Grandinote

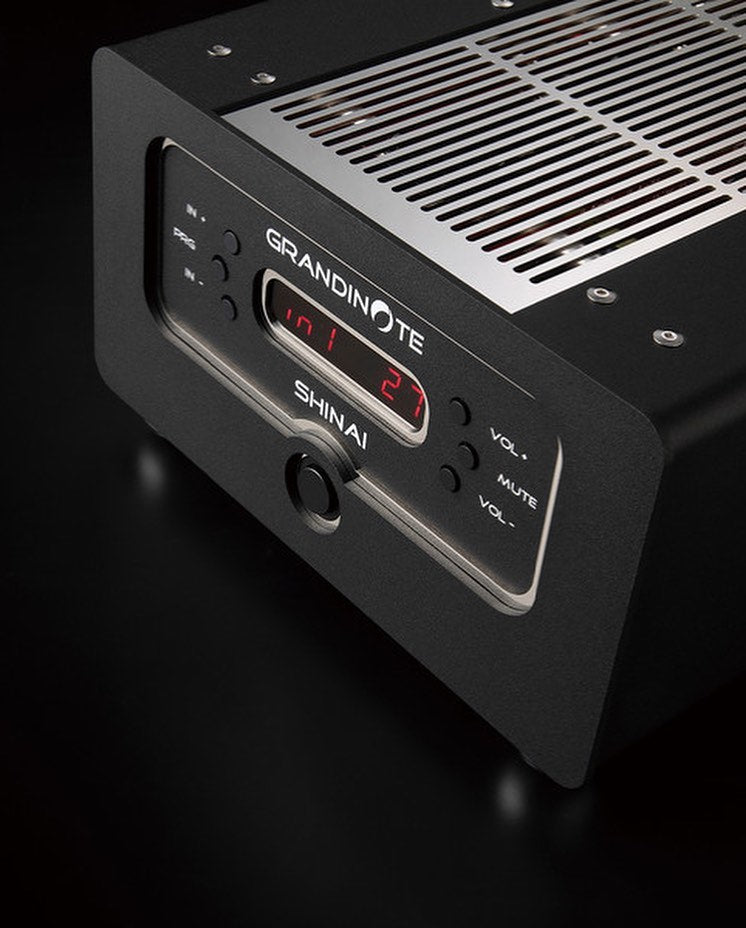

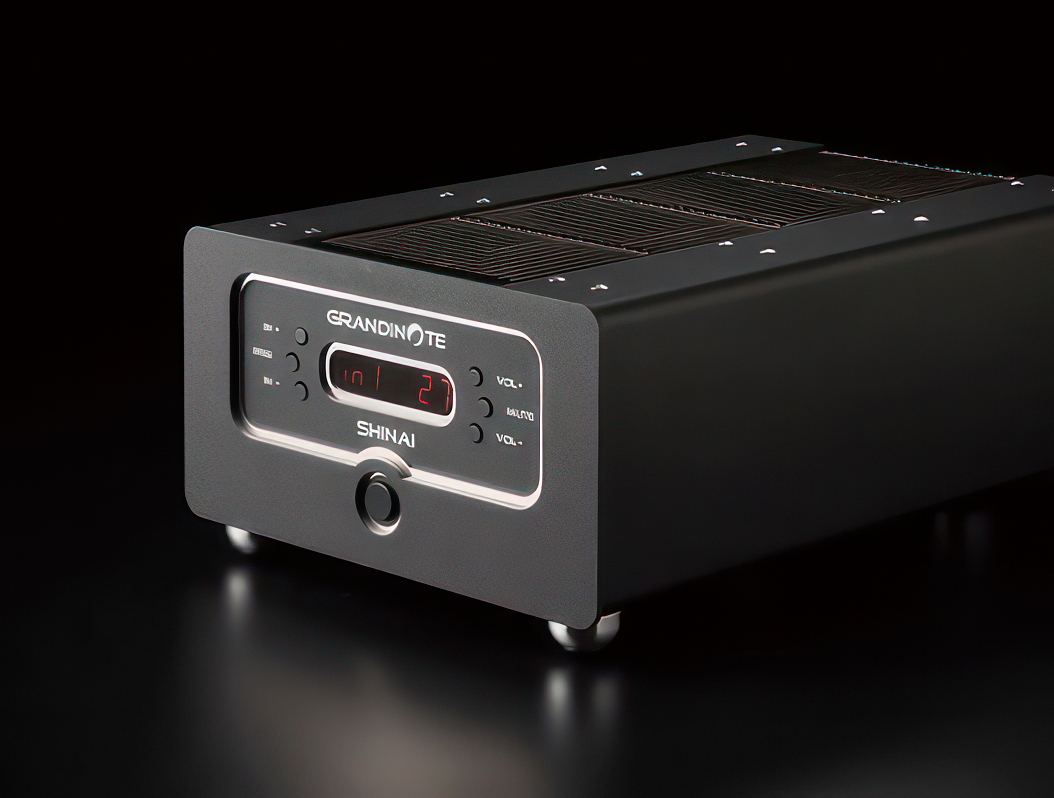

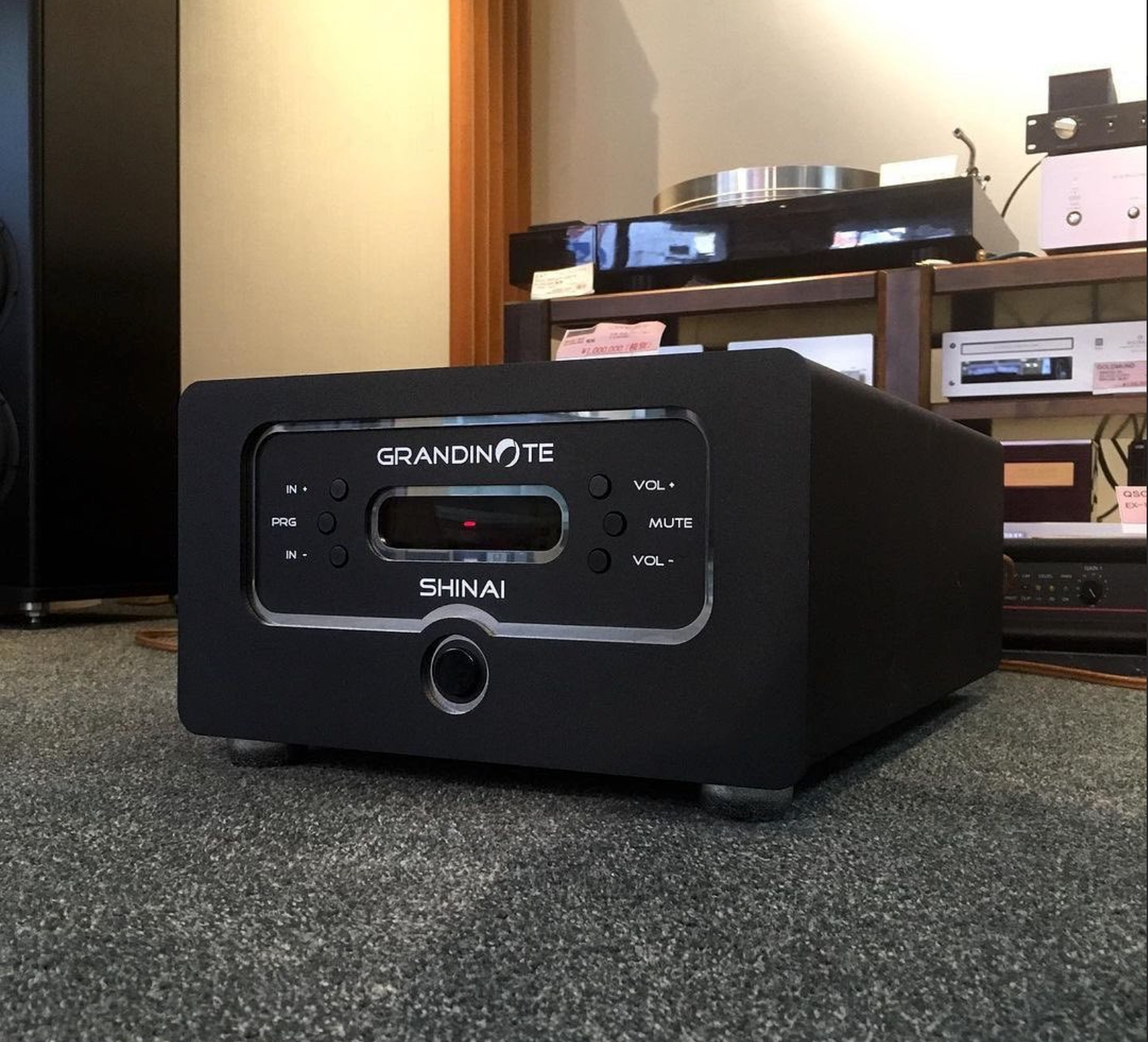

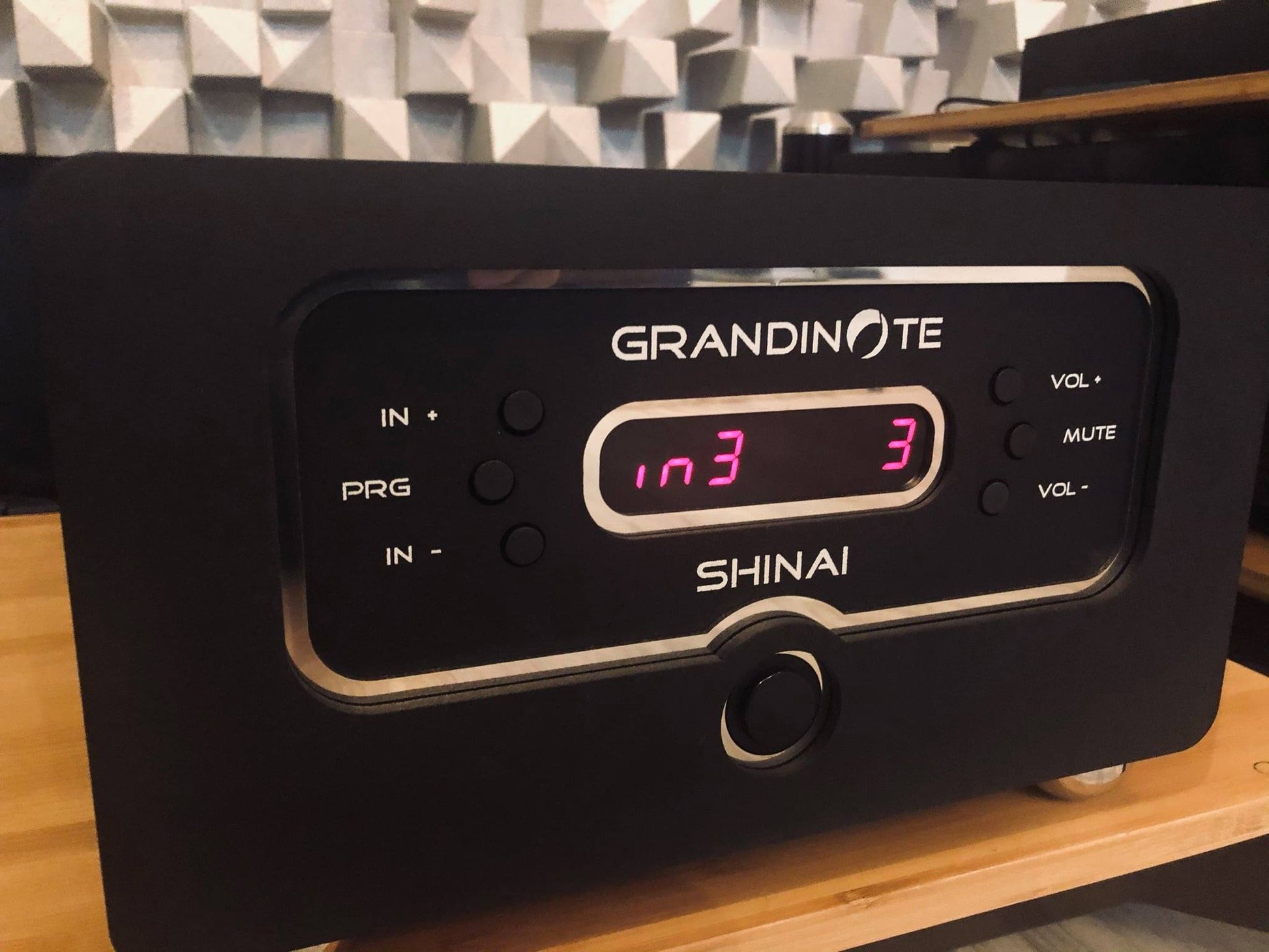

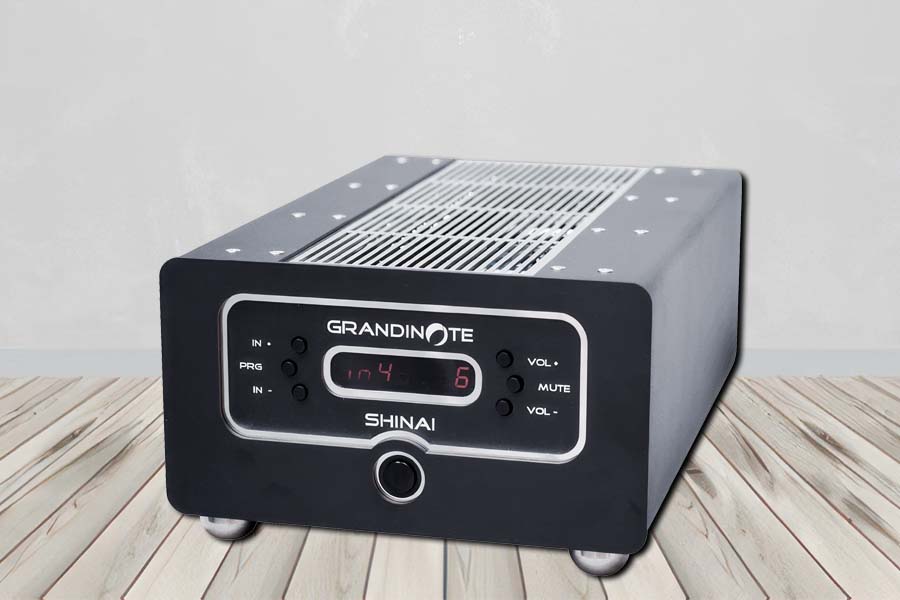

Shinai Integrated Amplifier

Shinai Integrated Amplifier

Regular price $15,000.00
Regular price Sale price $15,000.00
Sale Sold out

Grandinote Shinai has refined and charming sound of Magnetosolid® amplifiers.
Supreme musical characteristics of Prestigio, dual case 60W amplifier, are transferred in this little masterpiece of 37W for channel.
In summary, these are two mono units, enclosed in a single chassis.
Requires two power cables.


- Stereo integrated amplifier
- Power for channel 37W
- Damping factor >150
- Frequency response 2Hz - 240 kHz
- Two unbalanced inputs RCA
- Two balanced inputs XLR (full-balanced)
- Balanced inputs XLR unbalanced convertibles
- Class "A"
- No feedback
- Direct coupling stages: no capacitor used
- Full-dualmono
- Absorption 270W
- Weight 40kg
- W=318 x H=196 x L=473 [mm]

- Grandinote's warranty of 5 years


User Manual Download






 Massimiliano Magri's Magnetosolid® Technology

Yes... at the end of the last millennium I was very happy for the sound of my tube amps, but in my brain there was an only question:
"why are the tube amps richer of sound than solid state amps"I know perfectly the physics of the tubes and the solid state devices, so I understood that the answer to my question was in the circuits and not in the devices!In the year 2000 I started my research in my technology:the first amplifier with this technology was born in 2002.It's really a TRUE "tube amplifier schematic", WITHOUT the tubes and INSIDE the solid state devices.His sound was so different from all other amplifiers.His technology needs a proper name:"Magnetosolid® Technology".Magnetosolid is the union of MAGNETOand SOLID. MAGNETO is for ferromagnetic components, so the output transformers. SOLID is for solid state components.The transformers are a consequence of our schematics like the tube schematics.In the practical, what did I?I created solid state amplifiers with the rich natural sound of the tube amps, but not only:the frequency response of Magnetosolid® amps are so bigger than tube amps.The true plus is the damping factor:our impedence output is very, very lower than tube amplifiers.This produce a control in the bass frequencies that tubes can't dream!!!Other very important plus is in refinement of our schematic:- no capacitances between the stages (only before output transistors);- only two output transistors (simple push-pull);- no feedbacks;- for every device we use a dedicated power supply circuit.So we use a schematic like tube amp schematics, but improved!People thinks that tubes play better than solid state components...Really, tube amplifiers play better than ordinary solid state amplifiers, only for their schematics, not for the tubes.
